An Original Actuator Designed for Miraisens’ 3DHaptics
We introduce our in-house developed actuator, fully compatible with Miraisens’ 3DHaptics technology.
It enhances haptic expressiveness in grasp-type devices, enabling richer and more realistic touch experiences.
Device Structure
Concept proposals
・Supports 3DHaptics
・Supports bi-directional
vibration
Maximum Rating
・Maximum input voltage
: 6Vpp max
・Operating temperature range
: -10～50℃
・Storage temperature range
: -20～70℃
Electrical Characteristics
・Rated voltage ：4Vpp max
・Terminal resistance：13.5Ω±10%
Feature 1: Enhanced Force Sensation with 3DHaptics
By leveraging the force-feedback capabilities of 3DHaptics, the actuator can express:
・Translational motion sensations
・Rotational sensations achieved through the use of multiple actuators

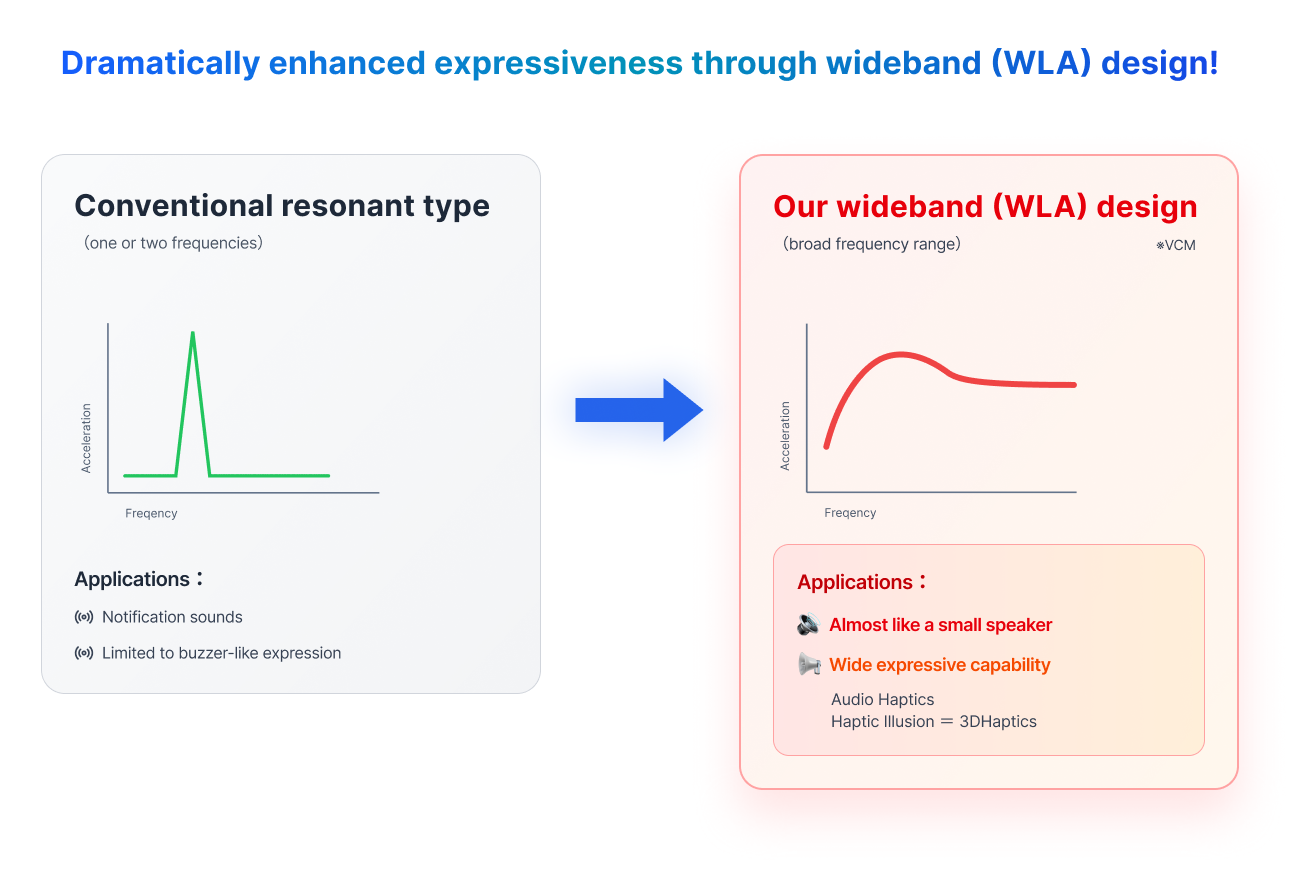

Feature 2: Wideband Frequency Design for Rich Expression
With its wideband frequency design, the actuator delivers a broad range of haptic expressions.
It enables advanced 3DHaptics experiences that go beyond simple vibration.
